Automann AB1DF23H-P1206 Air Spring - Cross Reference Volvo 21132005
149,97 US$
Automann Air Spring, Rolling Lobe AB1DF23H-P1206.
Cross Reference Volvo 1132005
Applications:Â VNL 670 Gen 2 (2003-2019) (No Year)
Automann’s premiere air spring boasts the ability to maintain ride height. Engineered to meet OEM specifications while minimizing vibration and load fluctuations. The Air Spring is guaranteed to ensure a smooth ride for drivers and cargo alike. Enjoy a quiet and level ride experience with these long-lasting Air Springs. Committed to Keeping Trucks Moving
Specific Features and Benefits
- Quality raw material and manufacturer expertise to guarantee performance
- A plastic Base allows for optimized weight and cost savings
- Features OEM dimensioning for hassle-free assembly
- Resistant to oil, lubricants, and adverse weather conditions
- Manufactured to be environmentally friendly and longer lasting
Cross Reference:

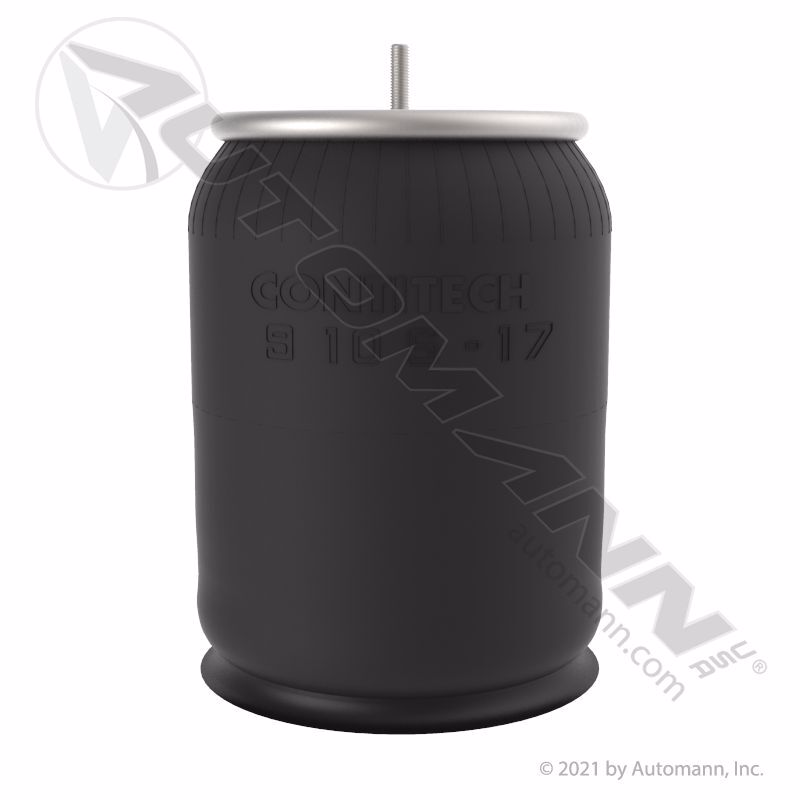

Contitech:Â 75561, 9 10S-17 P 1206
Firestone:Â 8468, W01M3588468, W01M588468, W01-M58-8468
Goodyear/Stemco:Â 1R121049, 1R12-1049, 1R12654, 1R12-654
Mack: 21244322, 21669088
Volvo: 21132004, 1132005
Â
Specifications
| Attribute | Value |
|---|---|
| Type | Rolling Lobe |
| Automann Bellows# | 1DF23H |
| Firestone Bellows# | 1T15XMR-7 |
| Goodyear Bellows# | 566-24-3-097 |
| Contitech Bellows# | 9 10S-17 |
| Bottom Plate Type | Plastic |
| Top Plate Hole/Stud Qty | 3 |
| Top Plate Dia. (A) | 9.00 |
| Top Plate C to C Dia. (B) | 2.75 |
| Bottom Plate Hole/Stud Qty | 1 |
| Bottom Plate Dia. (C) | 10.04 |
| Bottom Plate C to C Dia. (D) | N/A |
| Bottom Part # | BS14556 |
| Bumper | No |
| Bracket | No |
| Min. Height | 6.90 |
| Max. Height | 23.00 |
| Max. Dia. | 12.60 |
